Geaux Moto's EcoBoost Swapped Miata

The power to weight ratio of a Viper ACR

Better known as 'EcoYata'

Coming soon as a swap kit!

Also referred to as 'Miatang'

A Miata with an EcoBoost Mustang Powertrain

EcoBoost Swap Kit Coming Soon!

With our main focus being on Miata's, we wanted to build one like no other! As a result, we put an EcoBoost Mustang powertrain into an ND Miata, which has proven to be a monster. Our development car is currently running a built 2.3L Mountune motor, a MT-82 transmission, and a stock differential with extra bracing. We have CAD designed and manufactured our motor mounts, transmission mount, and roll bar in house, which will be offered as a kit soon and are currently working on a tubular rear subframe to incorporate a Ford 8.8 differential. This car is running a dry-sump system, but there will be a wet-sump oil pan solution as well. In terms of the electrical side, the car is running a Ford Performance ECU in addition to the stock PCM in order to retain all of the stock Mazda functions, including ABS and electric power steering! To accomplish this, we have developed a 'black box' in order for the two modules to communicate with each other. Some of the other OEM functions we will be incorporating will be the factory A/C controls, start/stop button, throttle pedal, and instrument cluster. With the help of an upgraded turbo and ethanol, this car put down an easy 450 wheel horsepower and weighs 2378 lbs! All of the work has been done in house at our shop down in Hammond, Louisiana. If you are interested or want more info, give us a call at 251-583-0785.

Geaux Moto Swap Parts

  • Geaux Moto, LLC
    $1,499.00
    $1,499.00
    Sold out
  • Geaux Moto
    $399.99
    $399.99
    Sold out

EcoBoost Specs

ENGINE AND DRIVETRAIN

- Geaux Moto engine, transmission, and differential mounts
- Mountune 2.3L EcoBoost with Focus RS cams
- Ford Motorsport ECU and wiring harness with Geaux Moto's 'black box'
- MT-82 transmission with MGW short/relocation shifter
- G25 660 Turbo w/ 45mm Turbosmart External Wastegate
- Custom fabricated downpipe, exhaust, and boost tubing

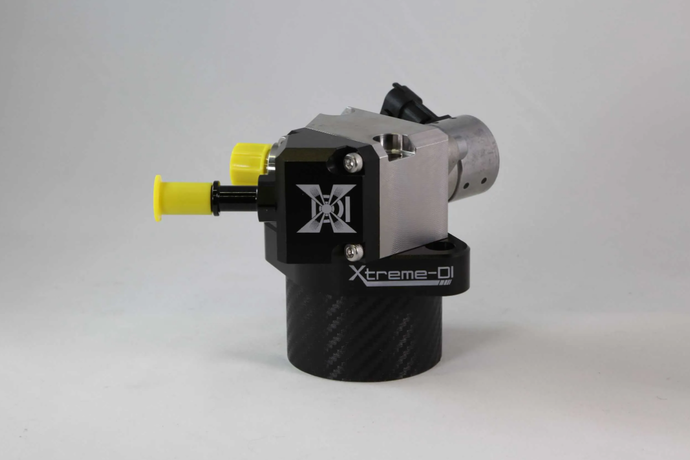

- Billet HPFP from the 3.5 EcoBoost

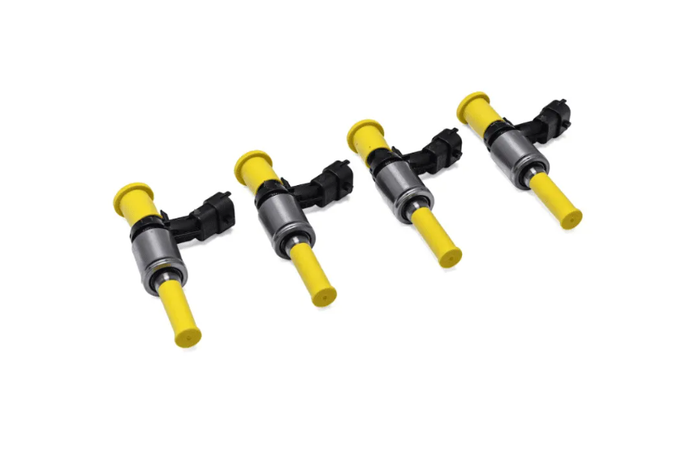

- 2000cc injectors
- Radium Fuel Cell with 2 Walbro 450's
- Mountune Dry Sump System
- Custom oil and diff coolers
- Wilwood clutch master cylinder

EXTERIOR

- Titan 7 T-R8 wheels 17x9 +45 (14.4 lbs each)
- 245/40/17 re71rs
- AP Racing Competition Brake Kit *CP9449*
- Wilwood 4 piston rear calipers with 12.8 rotors
- Custom scalloped rotors (saves 3 lbs each)
- Geaux Moto's ND Miata brake duct kit
- DG carbon hard top
- Carbon front lip, sideskirts, and spoiler

INTERIOR

- Custom suaede dash w/ infotainment screen delete
- Geaux Moto's ND Miata AIM dash insert
- Sparco carbon seats
- Sparco steering wheel
- Sparco 6 point harness belts
- Custom MGW shift knob

CHASSIS AND SUSPENSION

- Custom Spec Ohlins Coilovers
- Karcepts Front and Rear sway bars
- Full SPL links and spherical inserts
- Custom chassis bracing
- Geaux Moto's TIG welded, chromoly ND Miata roll bar
