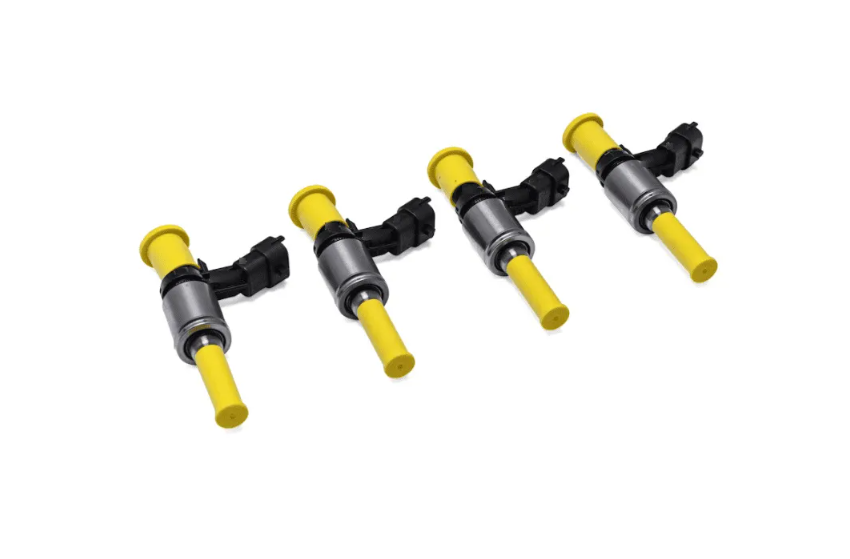

Xtreme-DI Injectors 2.3 Ecoboost Mustang

Vendor: Geaux Moto, LLC
Regular price: $1,199.00
Sale price: $1,199.00
Regular price
Unit price: per

There are 2 units left in stock.

Injector Size

Quantity

Quantity must be 1 or more

Injectors:
2000cc: Please inquire for current ETA
2500cc: Please inquire for current ETA
3000cc: Built to order, please inquire before purchasing

APPLICATION

Maximum Rail Pressure
180bar / 2600psi (XDI-HPFP35)
200bar / 2900psi (XDI-2000cc, 2500cc & 3000cc Injectors) (Minimum Pulse Width .8m/s)
250bar / 3600psi (EVO)
260bar / 3800psi (XDI-HPFP60)

2000cc Injectors

Flow Rates:
- 2000 cc/min at 100 bar
- 3000 cc/min at 220 bar
Power Capability:
- 684 BHP on E30
- 527 WHP on E85
Performance: Rock-solid, perfectly linear
Fitment: 100% drop-in with OEM spray pattern
Cold Start & Idle: Stock-like cold start and idle, with only one ECU value change required
Tuning: Custom tuning required

Injector Testing and Documentation:
Each XDI injector set is rigorously tested and matched at three critical operating points, with full documentation provided:

Idle Stability: 0.8 ms at 20 bar
Static Flow Reference: 10 ms at 100 bar
WOT Performance and Stability: 6 ms at 200 bar

Power Potentials

Combinations and Power Potential:

2.3 Mustang with Stock Turbo:
- Required: XDI-HPFP35 to run full E85
- No Additional Upgrades Needed: No low-pressure fuel pump, larger injectors, or port injection required
- Power Output: Up to 450 lb-ft torque possible (not recommended on stock motor)
- Estimated WHP: 383 WHP (auto) / 400 WHP (manual), turbo-limited
2.3 Mustang with Bigger Turbo and E85:
- Required: XDI-HPFP35 and XDI +50% DI-Injectors
- Power Output: Over 420 WHP, up to 500-550 WHP
2.3 Mustang with Larger Turbo Above 500-550 WHP on E85:
- Required: XDI-HPFP60 and XDI +50% DI-Injectors

Note: Power numbers are estimates and can vary based on environmental factors, dyno type, and calibration.
