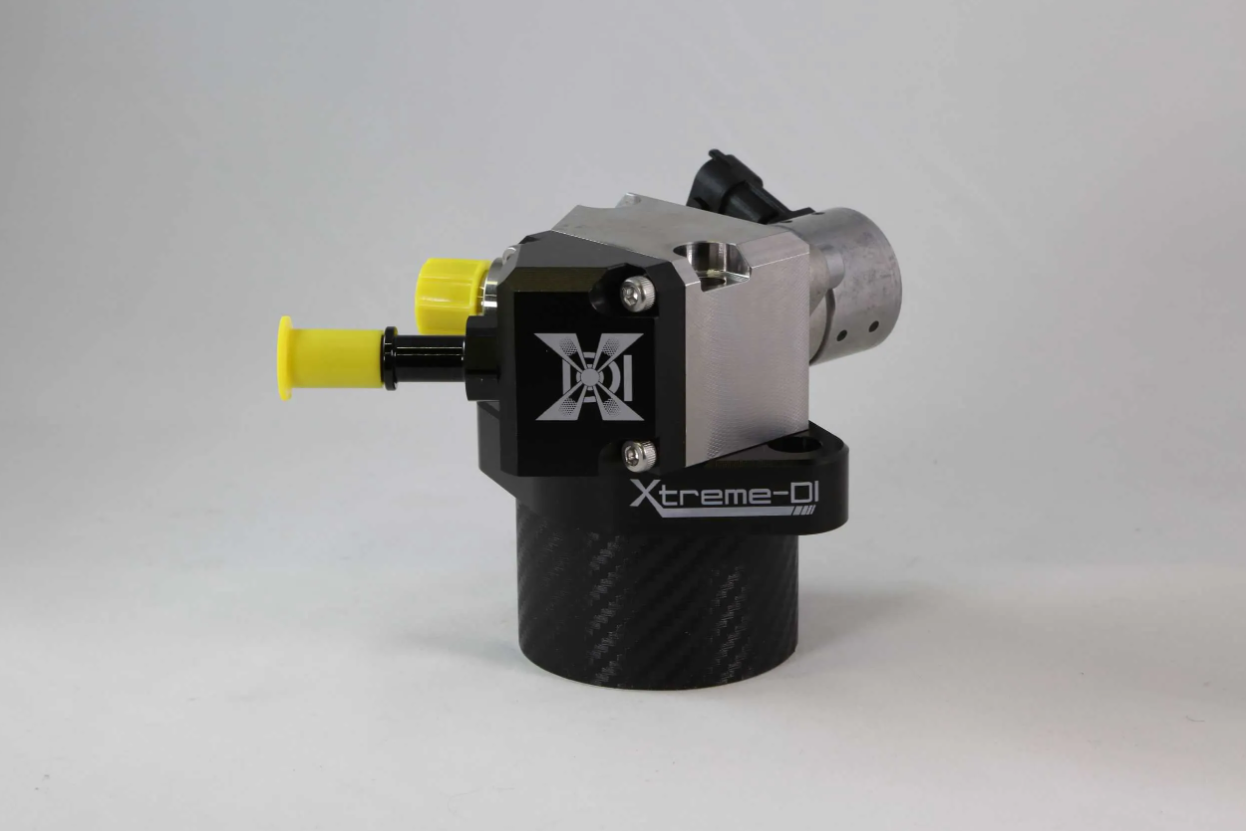

Xtreme-DI Fuel Pump 2.3 Ecoboost Mustang

Vendor: Geaux Moto, LLC
Regular price: $1,099.00
Sale price: $1,099.00
Regular price
Unit price: per

There are 2 units left in stock.

Fuel Pump Style

Quantity

Quantity must be 1 or more

HPFP35: Please inquire for current ETA
EVO: Please inquire for current ETA
HPFP60: Built to order

APPLICATION

Maximum Rail Pressure
180bar / 2600psi (XDI-HPFP35)
200bar / 2900psi (XDI-2000cc, 2500cc & 3000cc Injectors) (Minimum Pulse Width .8m/s)
250bar / 3600psi (EVO)
260bar / 3800psi (XDI-HPFP60)

MECHANICAL DATA

Geometric Volume

OEM: 1.12cc/rev
HPFP35/EVO: 1.52cc / rev (+36% capacity over OEM)
HPFP60: 1.82cc / rev (+63% capacity over OEM)

Fuel Compatibility: all known fuels, all Ethanol blends
Electric Connector: Bosch Compact 2-pin
Driver Profile: XDI, tuning changes needed
Accessories: electric pigtail
Housing material: stainless steel, hard coated Aluminum
Tuning Support: Standalone, SCT, COBB
Dry Weight: 1112 g

Power Potentials

Combinations and Power Potential:

2.3 Mustang with Stock Turbo:
- Required: XDI-HPFP35 to run full E85
- No Additional Upgrades Needed: No low-pressure fuel pump, larger injectors, or port injection required
- Power Output: Up to 450 lb-ft torque possible (not recommended on stock motor)
- Estimated WHP: 383 WHP (auto) / 400 WHP (manual), turbo-limited
2.3 Mustang with Bigger Turbo and E85:
- Required: XDI-HPFP35 and XDI +50% DI-Injectors
- Power Output: Over 420 WHP, up to 500-550 WHP
2.3 Mustang with Larger Turbo Above 500-550 WHP on E85:
- Required: XDI-HPFP60 and XDI +50% DI-Injectors

Note: Power numbers are estimates and can vary based on environmental factors, dyno type, and calibration.
