Geaux Moto ND Miata "HEATER EATER" Radiator

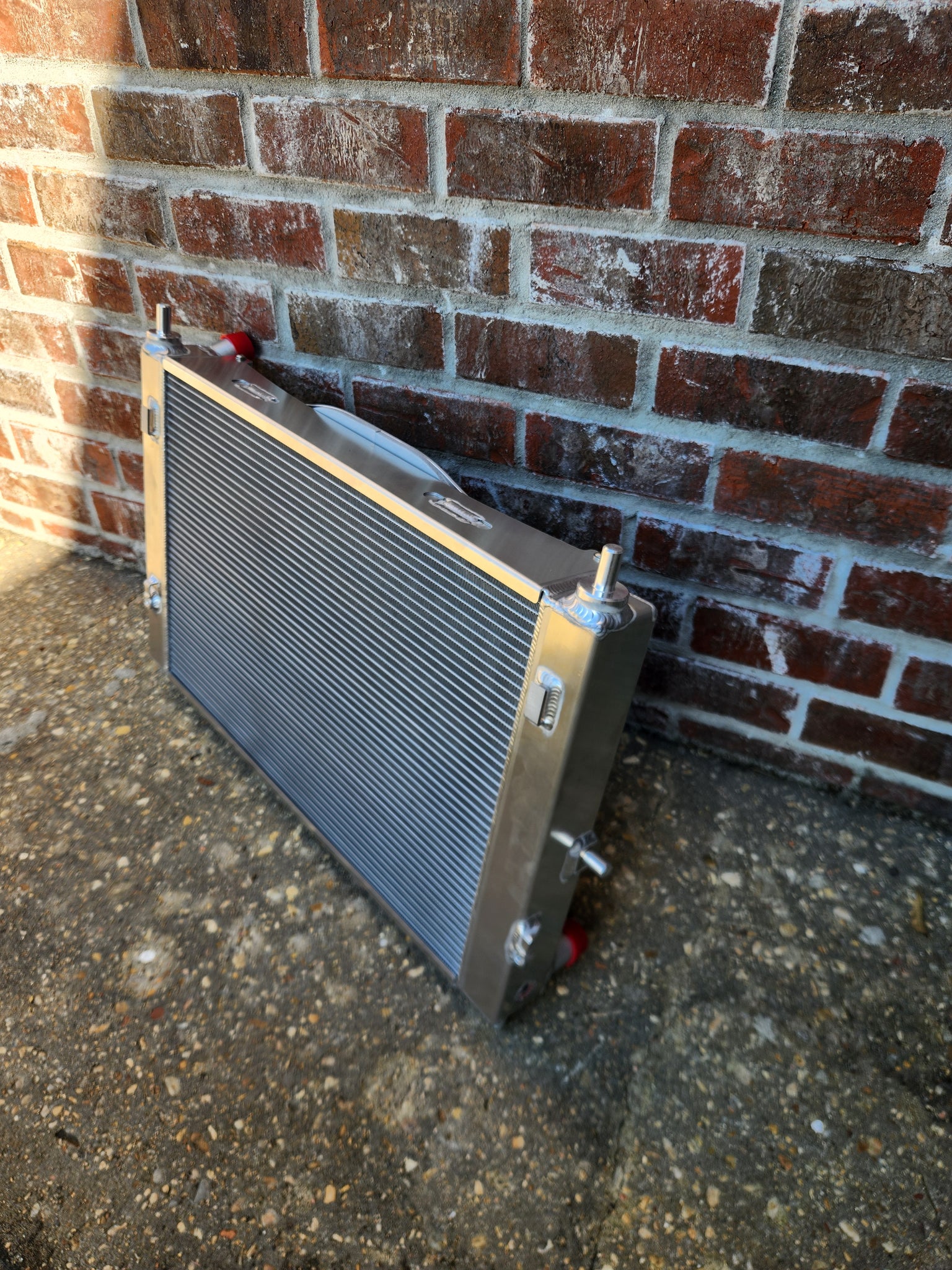

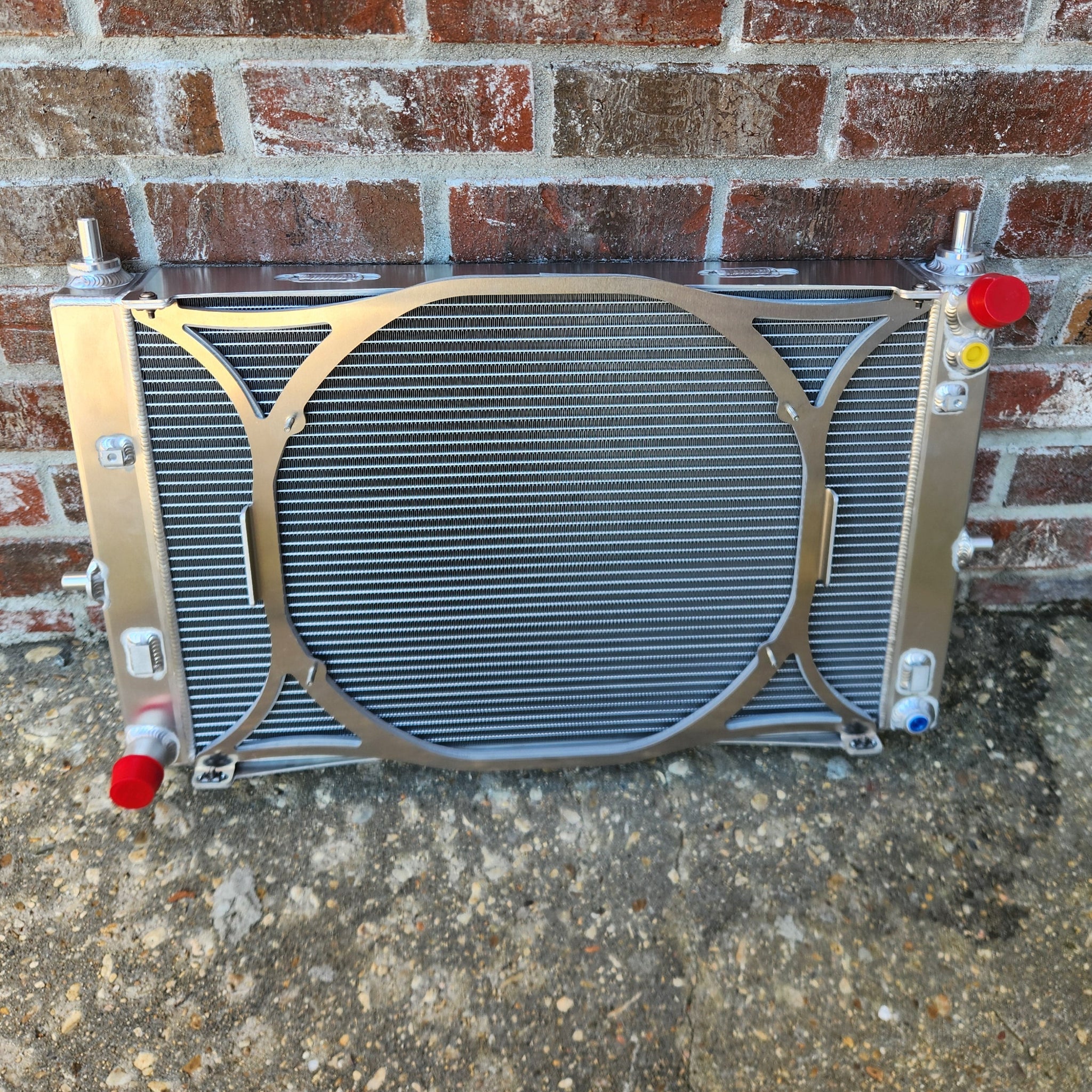

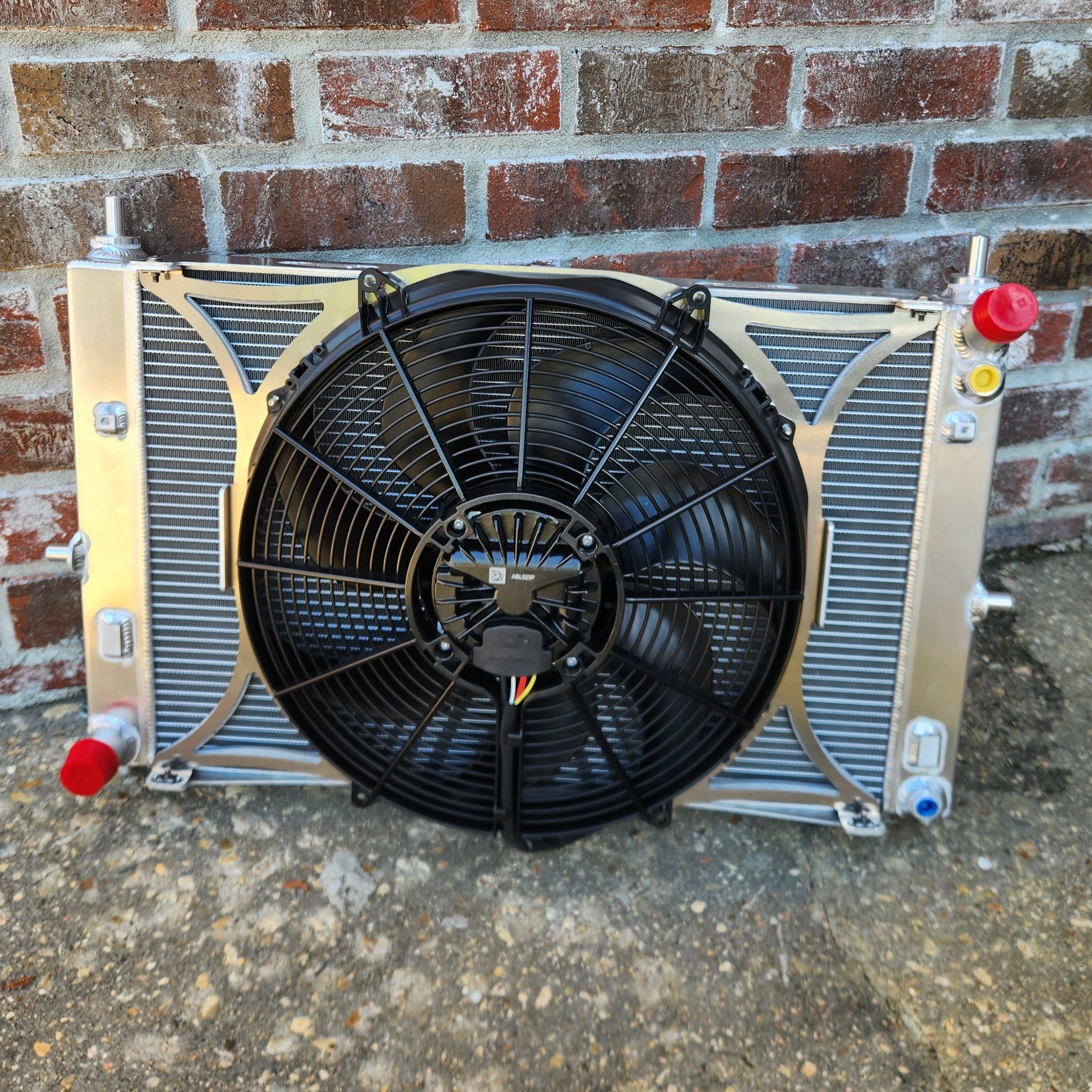

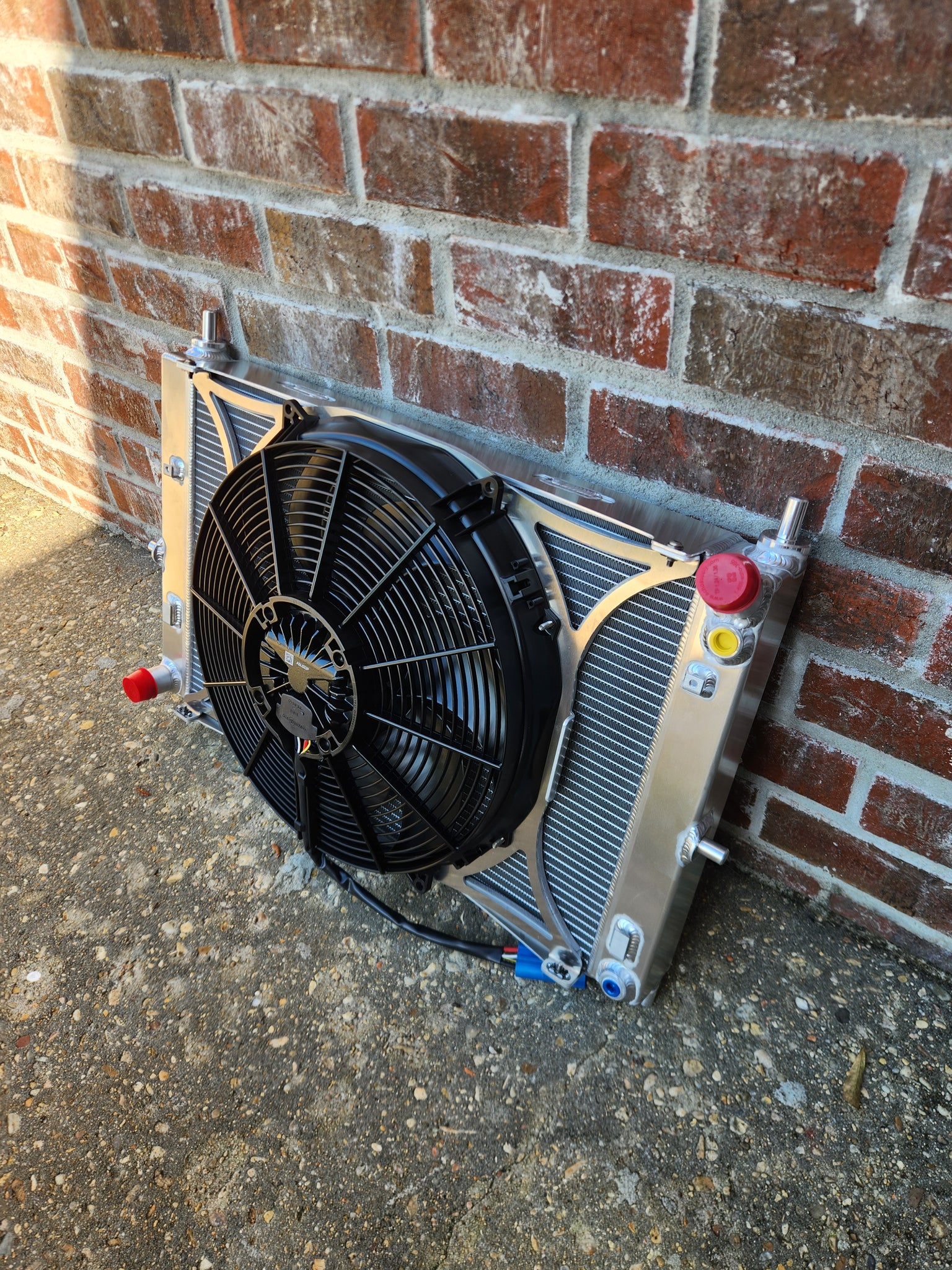

To cope with our 450WHP Ecoboost swapped ND's we needed some massive cooling upgrades!  So we collaborated with PWR and SPAL to make the best of the best! This whopping 65MM Core Aluminum radiator and 15.2in 2432cfm (Oem is about 600cfm) Brushless fan did just the trick.

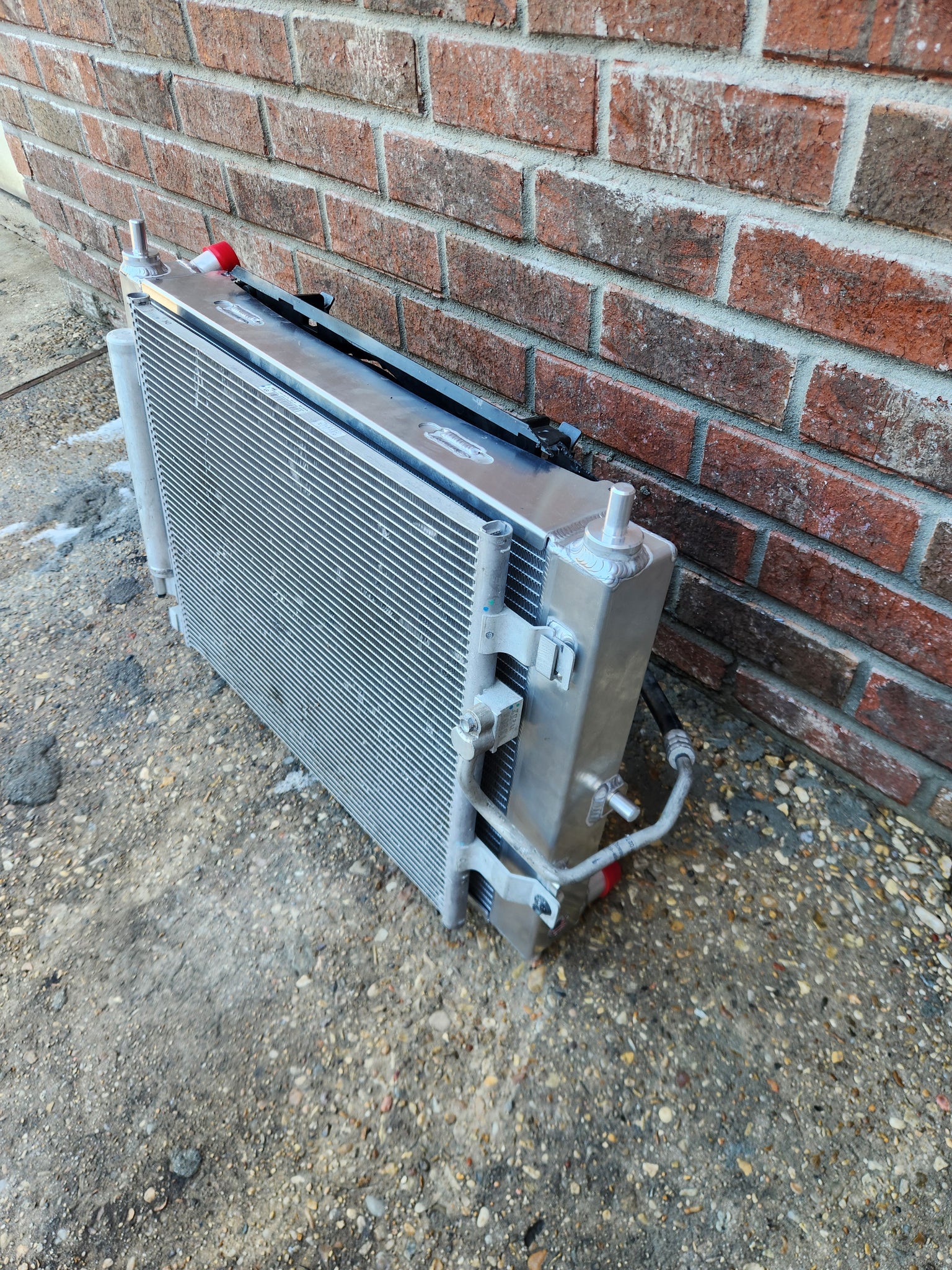

This combo is made to work with OEM mounting solutions and tabs to retain AC and fan if you prefer.  Although we highly reccomend the Brushless Spal Fan for maxium cooling.

The Spal Fan REQUIRES WIRING, we made this system to work with our Ecoboost kits first and foremost. In the case of that, the 500W brushless set-up will simply plug in for hassle free installation. If you plan to run this with OEM engine you will need to wire the fan entirely. It is quite simple but a thing nontheless. These Fans Pull 36AMPS which is significantly more than stock, we reccomend upgrading your alternator or going with the 300W version if this is the case.

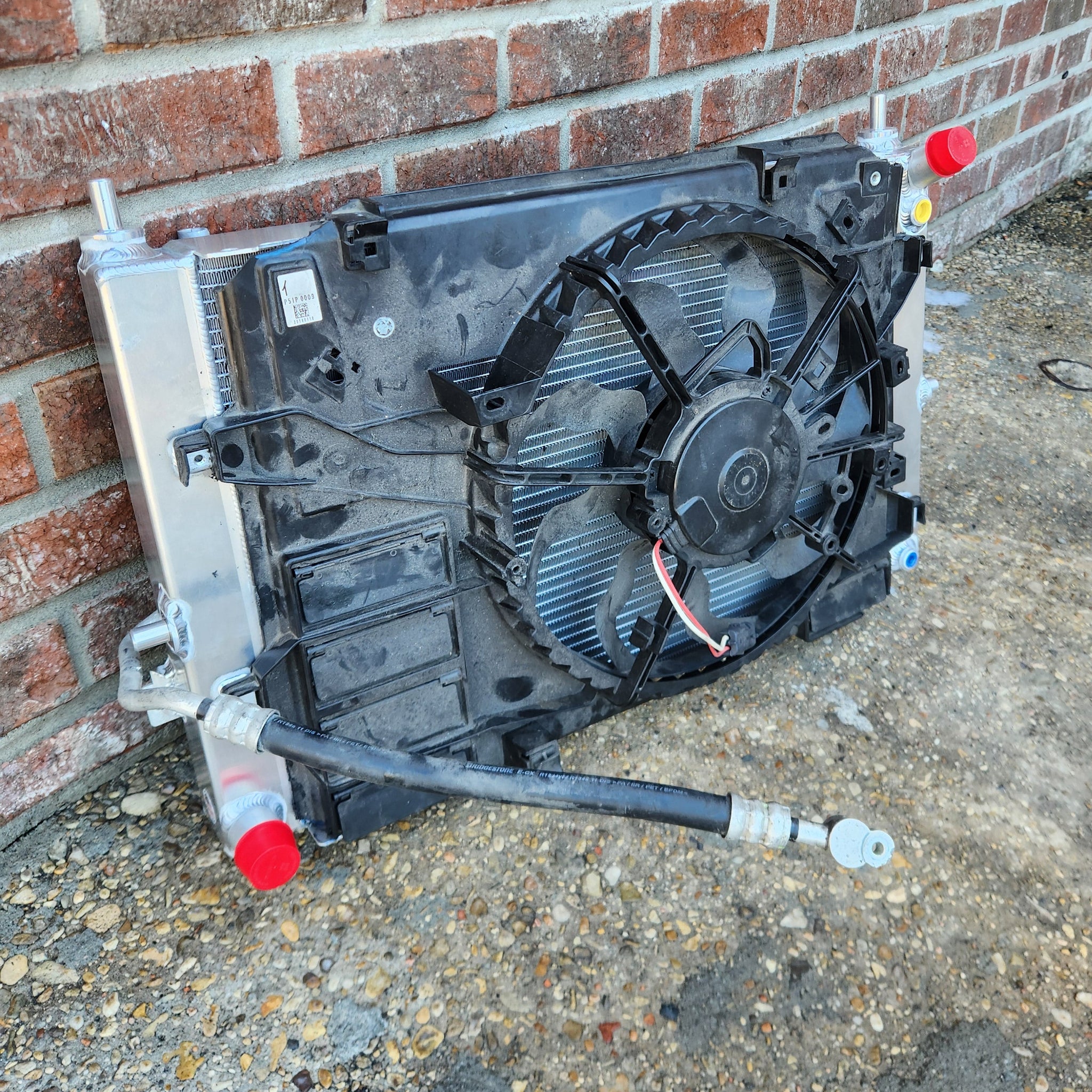

FOR STOCK FAN INSTALLATION- A fair bit of trimming is required to make the stock fan housing fit on these units since they are catered toward the 500W Spal fans.
